Example Pilot Projects:
- Air Sparge and Soil Vapor Extraction Pilot Tests
Equipment:

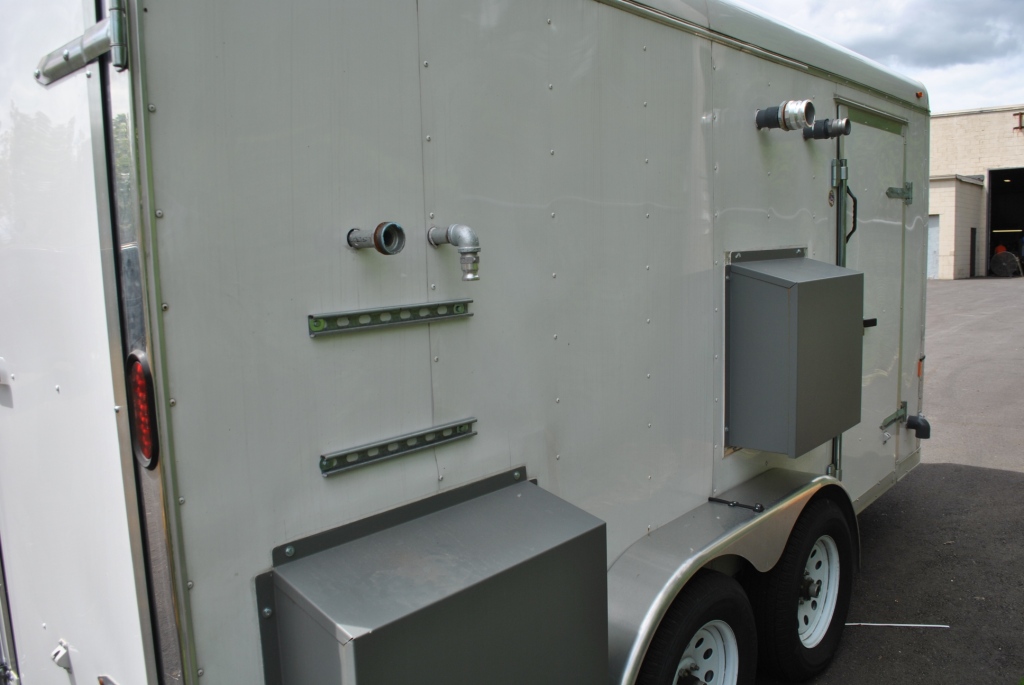

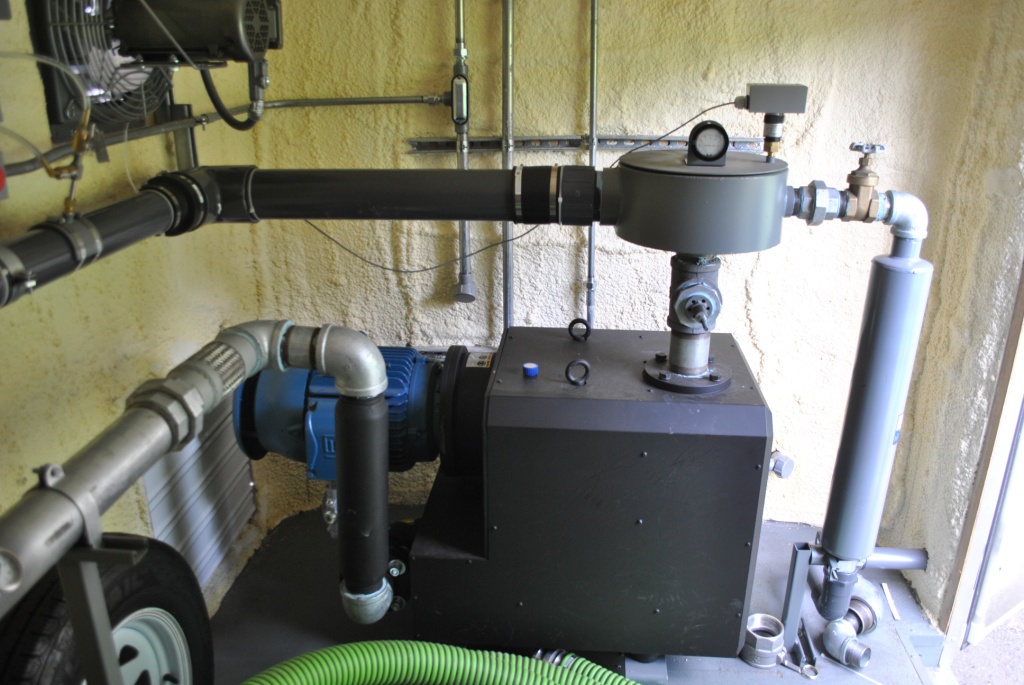

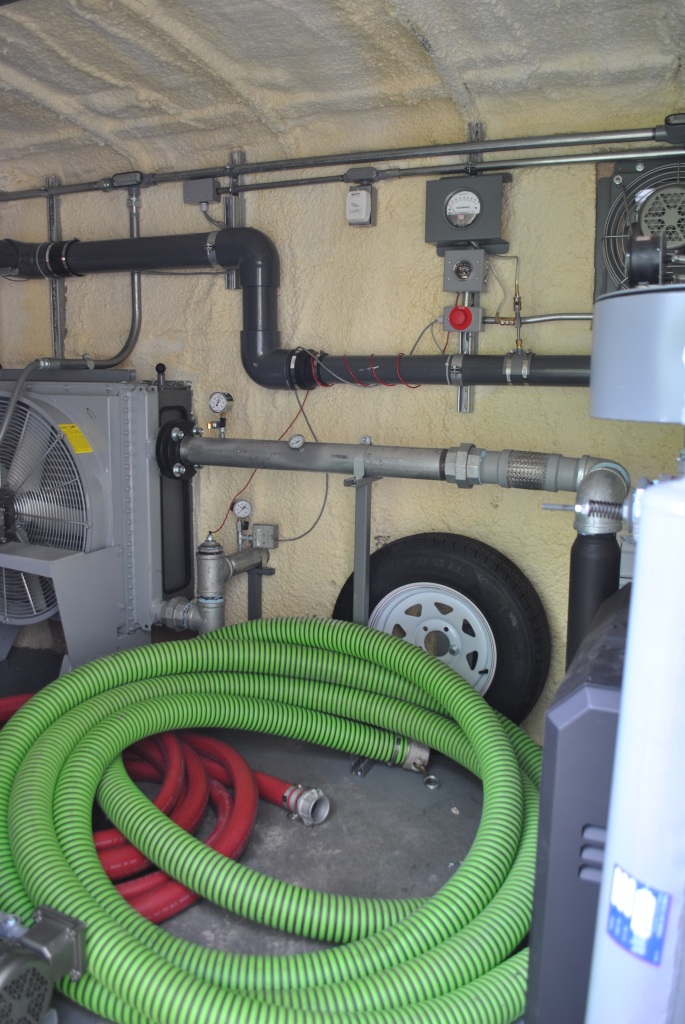

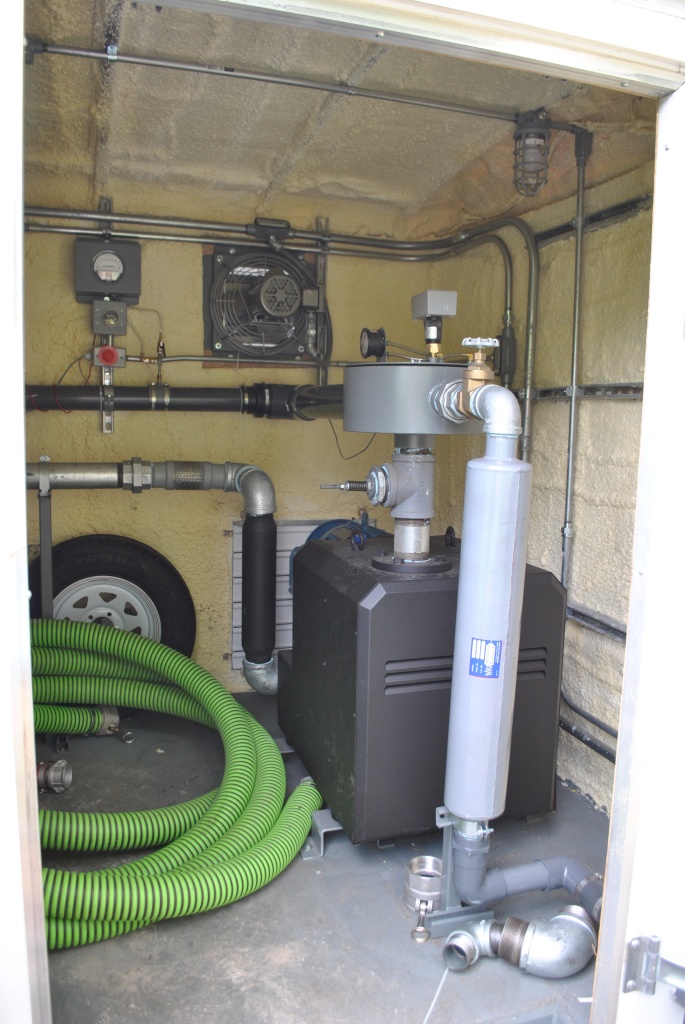

- Soil Vapor Extraction System - Squire Cogswell Model C15 TEFC (Class 1, Div2) 82 dba Rated for 324 ACFM (88 SCFM) at 22” HG (Blower rated for up to 24” HG)
- 15 HP WEG 208-230/460 Three Phase TEFC (Class 1, Div. 2) Motor
- Sound Cover
- Built in exhaust silencer
- Built in Vacuum regulating valve
- Vibration Pads
- 4” inlet with vacuum gauge with temperature gauge, and sample port.
- 4” Premium 10-micron inline filter between tank and vacuum pump.
- 4” Inlet Averaging Pitot Tube Flow Sensor with Magnehelic Gauge and Transmitter
- Mini Magnehelic to monitor differential pressure across filter element.
- Vacuum relief valve on inlet side of pump, field adjustable
- 1” Air Dilution Valve with filter, silencer
- 2” Premium chamber/absorption carbon steel discharge silencers in series
- Dilution valve with filter / silencer and Averaging Pitot Tube Flow Sensor with
Magnehelic Gauge
- Discharge Sample port, Pressure Gauge, and Temperature Gauge

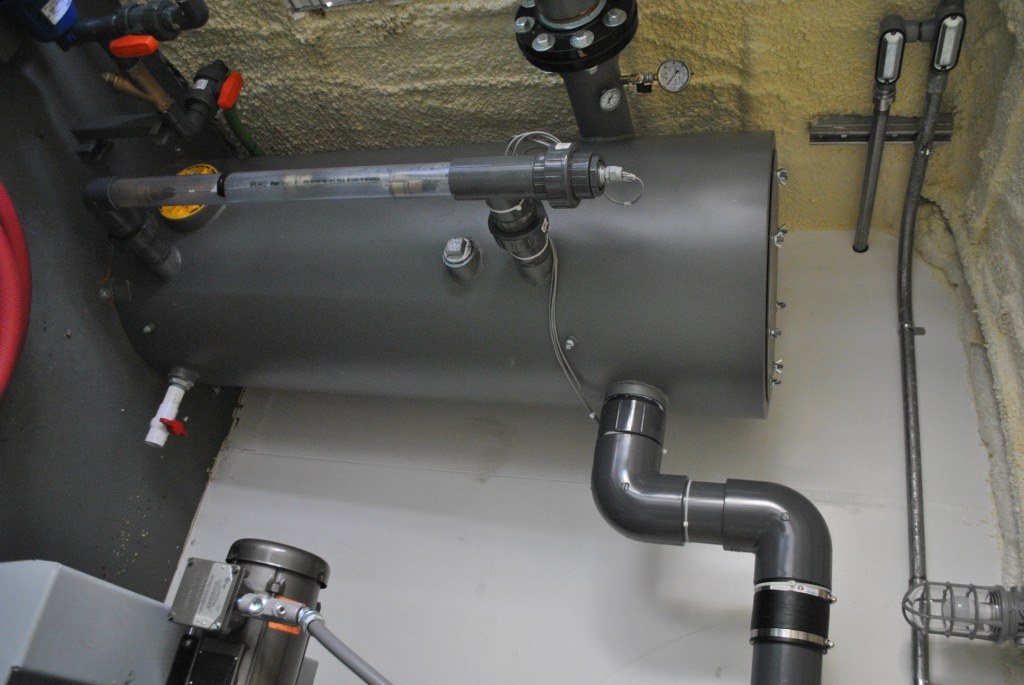

2. One (1) Fliteway “Cyclonic Action” 117 Gallon Vertical knockout tank, carbon steel with removable top, internal demister pads, 4” Inlet and 4” Discharge
Ports, 6” cleanout, and bottom drain.
- Automatic Transfer Pump System with
- ¾ HP Exp Moyno Progressive Cavity Pump
- Site Glass with
- Gems L-750 weighted pendulum float switches assembly for
- High-high level
- High-level pump on
- Low-level pump off
- Inlet Ball Valve and Wye Strainer
- Discharge Gate Valve, Swing Check Valve, Pressure Gauge w/sample port
- Totalizing Flow Meter
- Recirculation Loop with valve

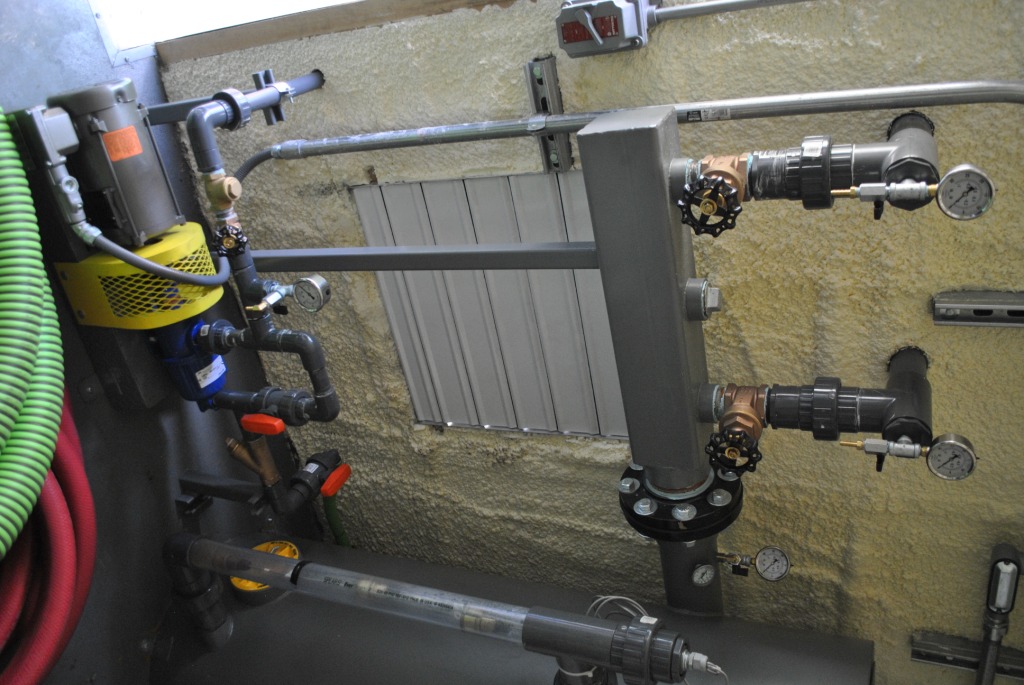

3. Inlet Manifold with Three (3) 2” legs with
- Vacuum Gauges
- Gate Valves

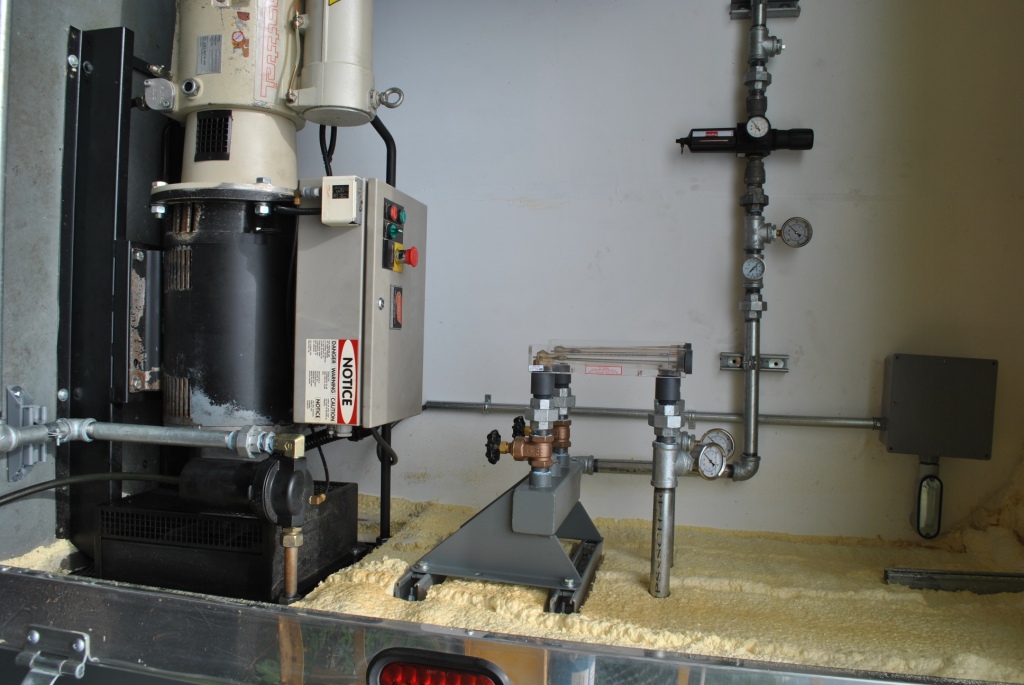

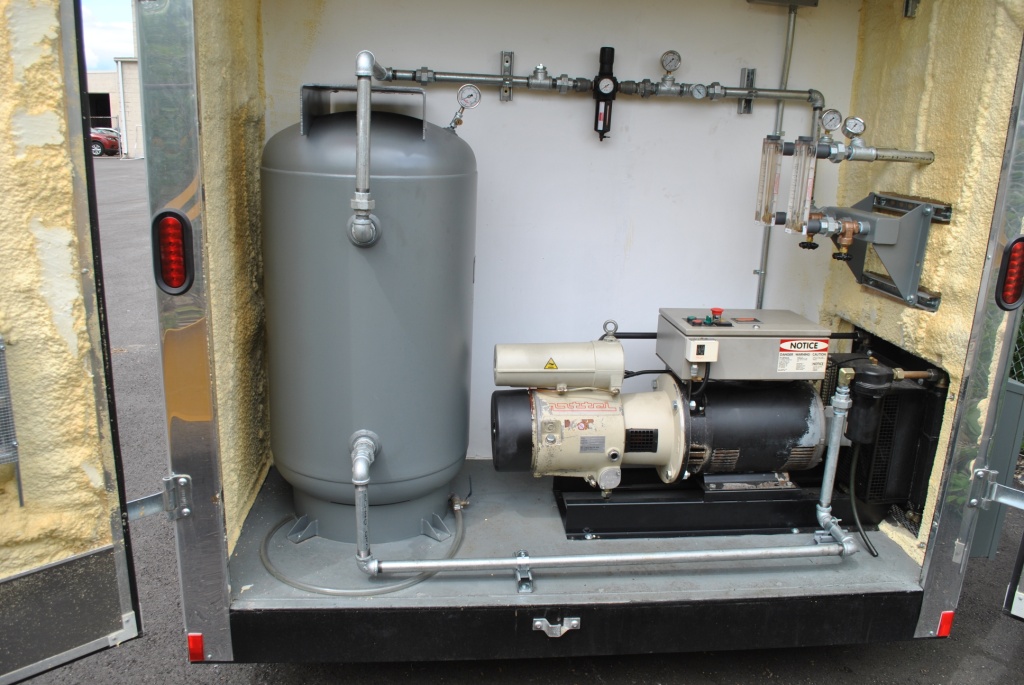

- Air Sparging System - Mattei Model ERC511L Air Cooled Rotary Vane Air Compressor, rated for 67 CFM at 125 PSIG,
- Mattei ERC511L
- Standard Control Panel with Auto Restart
- 15 HP 208-230/460 Three Phase 1740 RPM TEFC Motor
- Low Oil Level Switch

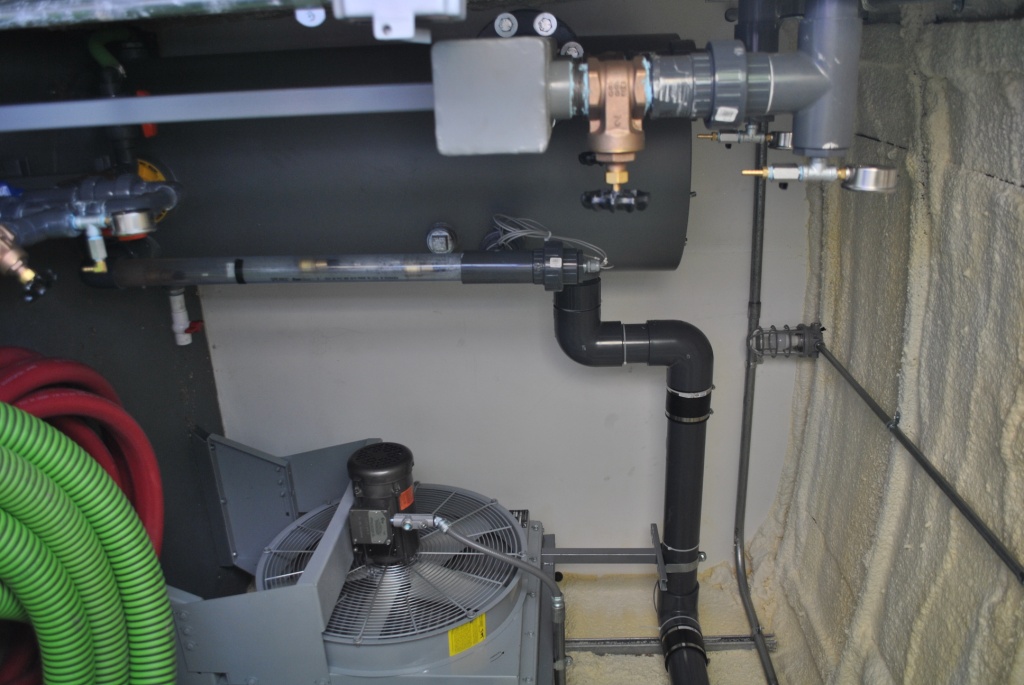

- Air Cooled Aftercooler –Vented through Trailer Wall
- Condensate Separator
- Air Pressure Gauge
- 80 Gallon ASME Tank with Nema 4 Auto drain valve
- Low Pressure Switch
- 1” Direct Read Flow Meter
- 1” Solenoid Dump Valve
- 1" Pressure Regulator
- 1” Particulate Filter
- 1" Arrow Coalescing Filter
- 1” Discharge

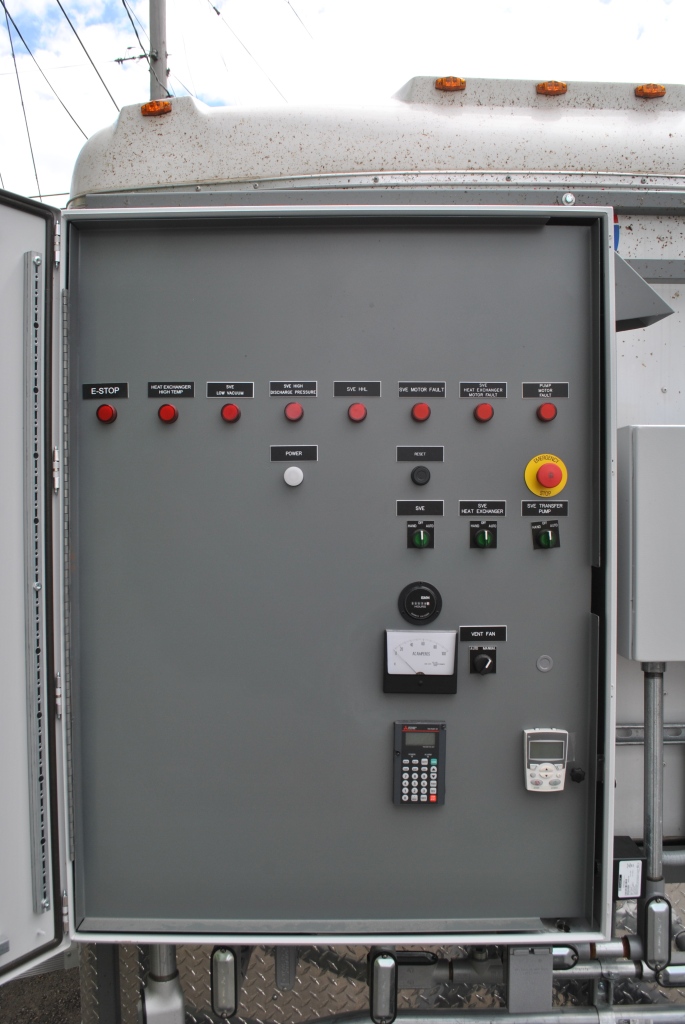

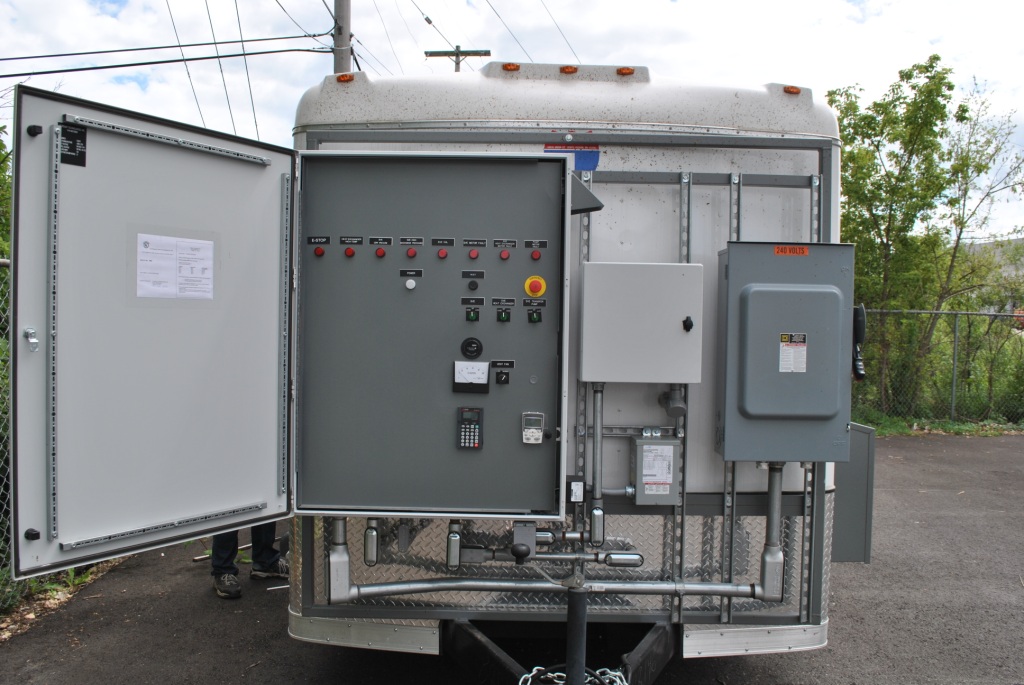

- Control System - NEMA 4 Control Panel (230/460 VAC Three Phase) Mounted and Tested on Trailer
- Separate NEMA 3R Fused Disconnect (60 Amp)
- High Voltage Panel
- 36” by 36” NEMA 4 Panel, lockable with inner panel and vent fan
- Low Voltage (Operator Controls) Panel
- 12” by 24” NEMA 4 Panel, lockable with inner panel
- 3 KVA Power Transformer
- Relay Logic
- Branch Service Protection
- Trailer Lights
- Trailer Vent Fan
- GFI
- 15 HP Air Compressor
- VFD for 15 HP SVE Motor
- Motor Starter and Thermal Overload Protection for:
- ¾ HP Transfer Pump

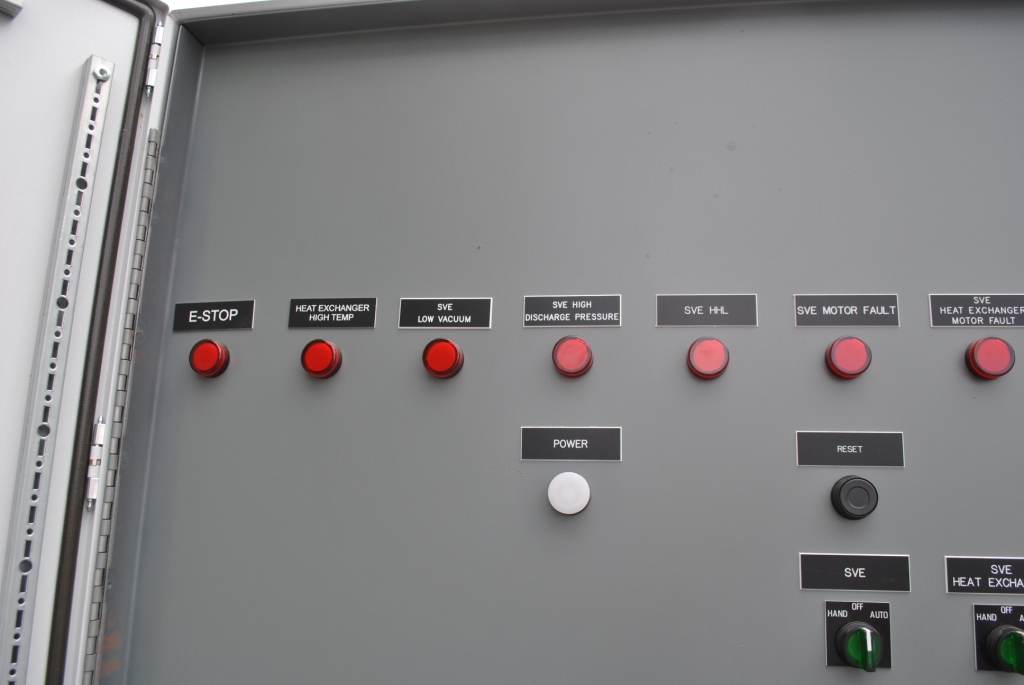

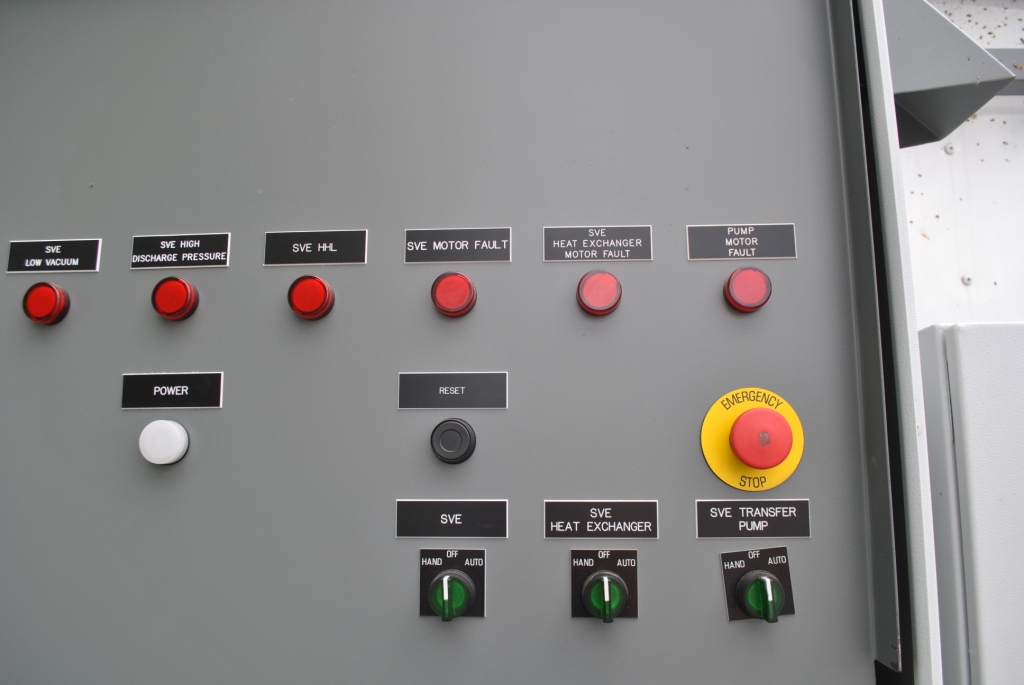

- Alarm Lights (alarm details are displayed on Touch Screen)
- SVE Motor Fault
- SVE HHL
- SVE Inlet Low Vacuum
- Alarm Reset Button

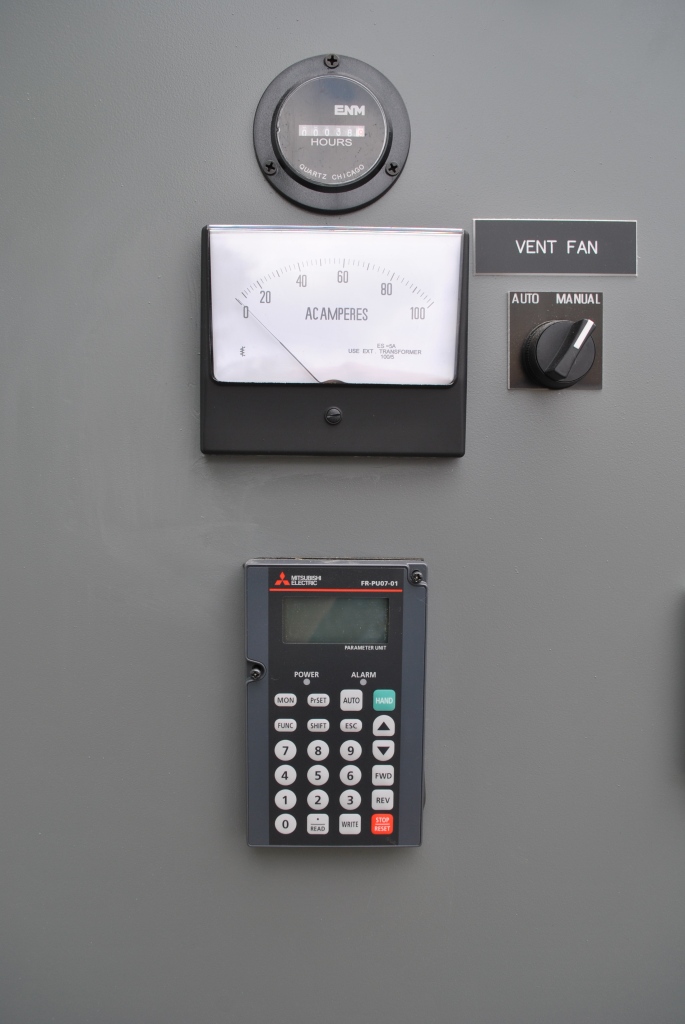

- Hour Meter
- Amp Meter
